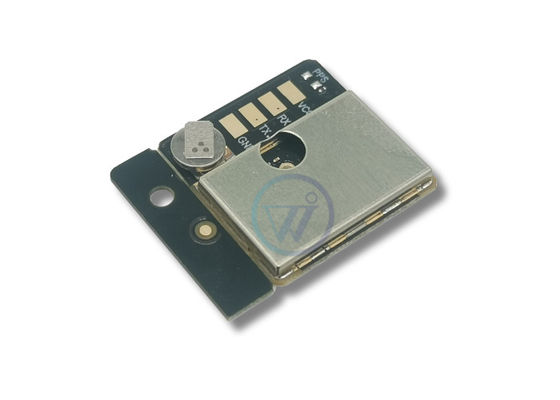

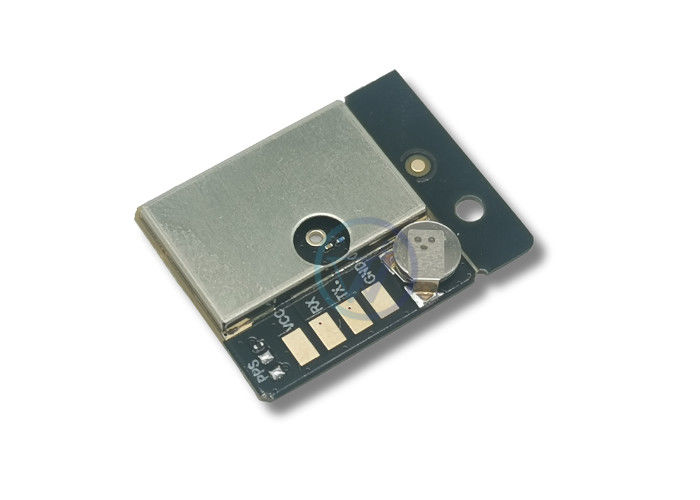

Product Features of the GNSS Positioning Module
• Build on high performance GNSS single chip AT6558R
• 72 channels in Search mode
• Cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity
• Up to 5Hz navigation update rate
• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support
• Supports AGPS
• Integrated TCXO,LNA,SAW,RTC
• Compact size suitable for space-sensitive application
• Support standard NMEA
• Support data encryption
Antenna of the GPS Tracking Module Receiver
The YW-18182Z3 module are designed for use with passive and active antennas.
| Parameter | Specification |
| Passive Antenna Type | 18.1*18.1*2mm |
| Minimum gain | 15 dB (to compensate signal loss in RF cable) |
| Active Antenna Recommendations | Maximum gain 30 dB |
| Maximum noise figure | 1.5 dB |

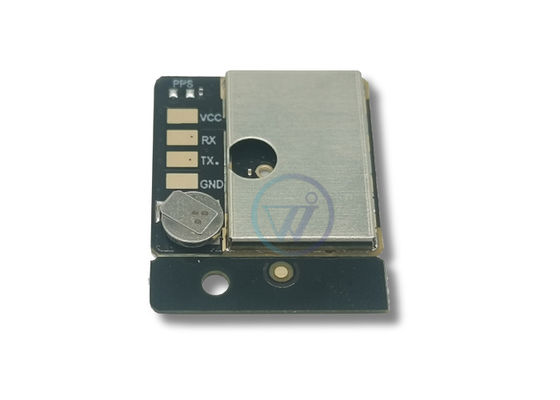

CON Pin Description for YW-18182Z3 GPS Module
| Pin No. | Pin name | I/O | Description | Remark |
| 1 | VCC | I | Module Power Supply | Voltage range: 3V~5V |
| 2 | RXD | I | UART Serial Data Input | |
| 3 | TXD | O | UART Serial Data output | |
| 4 | GND | I | Ground |
| Option Category | Available Choices |
| Satellite Systems | - GPS (L1 C/A) - GPS + GLONASS - GPS + Galileo - GPS + BeiDou - Multi-constellation (All systems) |
| Positioning Accuracy | - Standard: 2.5m (SBAS) / 5m (autonomous) - High-Precision: <1m (RTK/PPK) - Sub-meter (with DGPS) |
| Channels | 72 channels or customized |
| Option Category | Available Choices |
| Update Rate | - 1Hz (default) - 5Hz/10Hz (navigation) - 20Hz/50Hz (drone/racing) |
| TTFF | - Cold start: ≤30s - Hot start: ≤1s - A-GPS assisted: ≤5s |
| Sensitivity | - Tracking: -165dBm to -162dBm - Acquisition: -148dBm to -160dBm |
| Option Category | Available Choices |
| Data Interface | - UART (9600/115200 bps) - I2C/SPI - USB 2.0/3.0 - CAN bus (automotive) |
| Protocols | - NMEA 0183 (default) - UBX (u-blox binary) - RTCM 3.x (RTK) |
| Wireless Connectivity | - Bluetooth/BLE - Wi-Fi - 4G LTE (with GNSS+cellular modules) |
| Option Category | Available Choices |
| Operating Voltage | - 3.3V (low-power) - 5V (industrial) - Wide range: 2.7V–5.5V |
| Power Consumption | - Active: 25mA–50mA - Sleep: <1mA - Supercapacitor backup (optional) |
| Temperature Range | - Commercial: -20°C to +70°C - Industrial: -40°C to +85°C - Automotive: -40°C to +105°C |
| Option Category | Available Choices |
| Antenna Type | - Passive ceramic patch (embedded) - Active external (SMA/FAKRA) - Magnetic mount |
| Antenna Gain | - Standard: 28dB - High-gain: 35dB (for weak signals) |
| Option Category | Available Choices |
| Certifications | - FCC/CE/RoHS |
| Option Category | Available Choices |
| Data Logging | - Built-in flash (4MB–32MB) - MicroSD slot |
| Firmware Upgrades | - OTA (Wi-Fi/cellular) - USB/UART local update |
| Special Functions | - Geofencing - Dead reckoning (DR) - Anti-jamming (military-grade) |
Shelf Life: 12 months (unopened).
Environment: Temperature: <40°C
Relative Humidity: <90% RH
Immediate Action: After opening the sealed bag, the GPS module must undergo reflow soldering (infrared or vapor-phase) within 168 hours.
Workshop Conditions During Mounting:
Temperature: ≤30°C
Humidity: ≤60% RH
Humidity Indicator Card (HIC) Check:
Safe Range: ≤20% RH (blue) → Module is dry.
Warning Thresholds:
30%~40% RH (pink) → Module may have absorbed moisture.
40% RH (red) → Module has absorbed moisture and requires baking before use.
Total Exposure Time: From bag opening to reflow soldering must not exceed 168 hours (7 days) under controlled workshop conditions.
