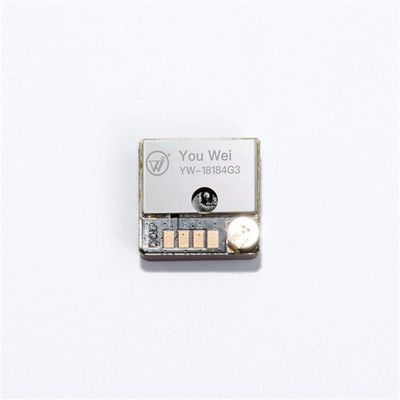

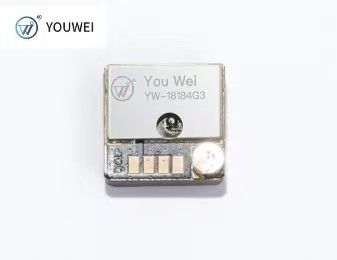

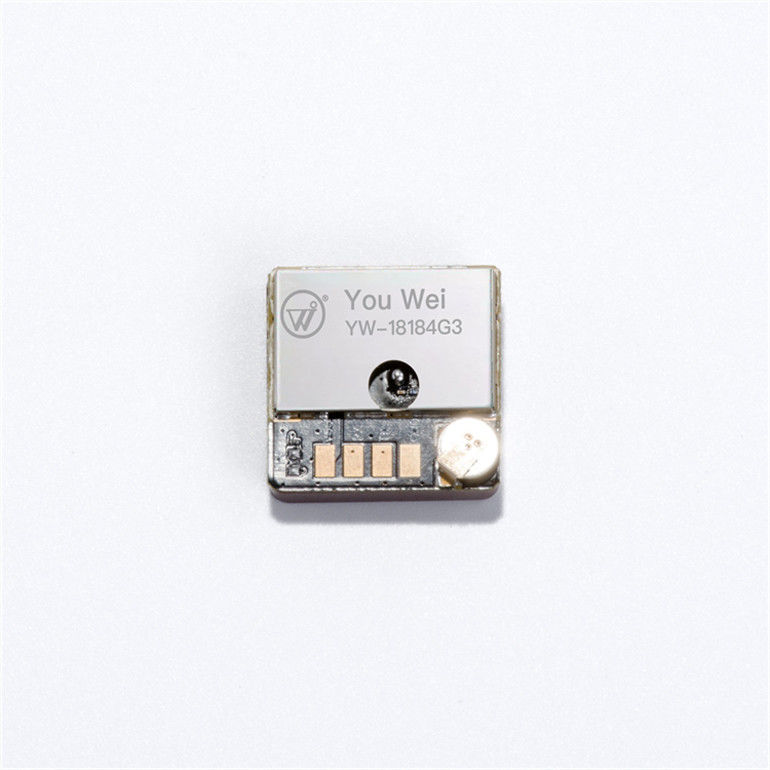

Smallest Low Power Gps Module With Navigation Tracking System Relay Tracking Device

Name: Smallest Low Power Gps Module With Navigation Tracking System Relay Tracking Device
Brand: Shenzhen Youwei Communication Co., Ltd.
SKU: YW-18184G3
Price: Negotiable USD
Availability: InStock

Brand Name:	Youwei
Model Number:	YW-18184G3
MOQ:	200
Price:	CN¥43.45/units 1-99 units
Delivery Time:	5-8 Work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram Paypal

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE，Rohs

Type:

24PIN LCC Package

Country Of Origin:

China

Brand:

Youwei

Chipset:

GK9501

Product Name:

YOUWEI

Payment:

Paypal\TT\Western Union\Trade Assurance

Feature:

Band

D/C:

Newest

Battery:

Internal Back-up Battery

Operating Temperature Range:

-40 To 85℃C

Description:

GNSS Module

Cetificate:

ISO9001

Supply Voltage:

DC 3.3-5.0V

Voltage Range:

1.4 To 3.6 V

Working Temperature:

-40℃ To 85℃

Communication Protocol:

UART

Baud Rate:

9600

Operating Supply Voltage:

2.7V To 3.6 V

Positioning Mode:

A-GNSS，Double Frequency Single Point

Frequency:

GPS L1, GLONASS L1

Application:

Positioning, Surveying And Mapping, Etc

Sensitivity:

Tracking :-163dbm Capture :-147dbm

Max Speed:

515 M/s

Output Mode:

UART+TTL+R232

Operating Mode:

GPS+GLONASS+ BDS

Gps Receiver:

U-blox NEO-6M

Packaging Details:

PE Bag Cartons

Supply Ability:

200000 PCS MONTH

Highlight:

Smallest low power gps module

Smallest rtk gps module

Navigation Tracking low power gps module

Product Description

High Quality YW-18184G3 Gps Tracker Chip Gps Navigation Tracking System Relay Tracking Device

1.Product Description

Featuring a single die solution, low power consumption and low costs, the YW-18184Z1 are multi-

GPS/GNSS (GPS, Beidou,GLONASS, Galileo and QZSS and SBAS) positioning Module developed to meet the

requirements of an extensive range of applications and end-products. Based on the high performance

AT6558R position engine,these receivers provide exceptional sensitivity and acquisition times and

interference suppression measures enable reliable positioning even in difficult signal conditions.

2.Product Features

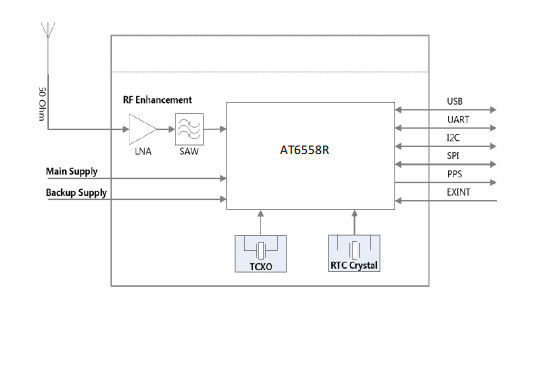

• Build on high performance GNSS single chip AT6558R

• 72 channels in Search mode

• cold start acquisition sensitivity of -147 dBm and -162 dBm tracking sensitivity

• up to 5Hz navigation update rate

• Supports any two of GPS/QZSS, Beidou,GLONASS, Galileo,SBAS simultaneously by firmware support

• Supports AGPS

• Integrated TCXO,LNA,SAW,RTC

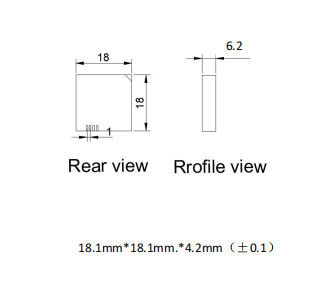

• Compact size (18.1mm x 18.1mm x6.2mm±0.1mm ) suitable for space-sensitive application

• Support standard NMEA

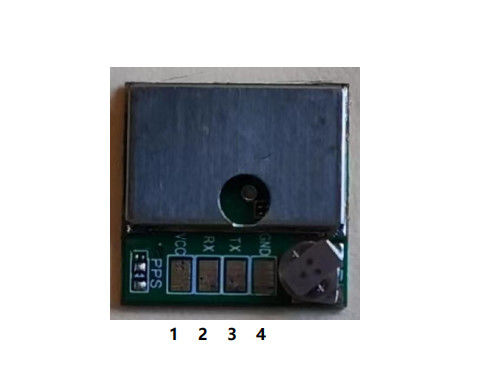

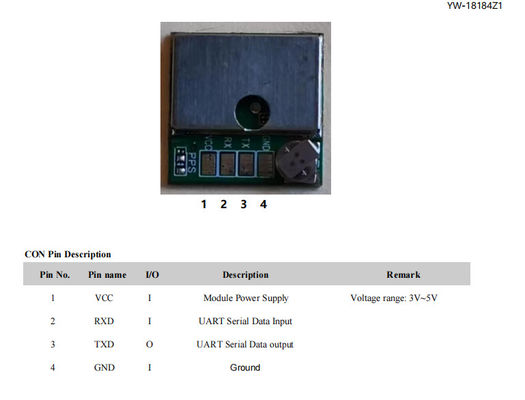

3.CON Pin Description

4.Definition of Pin Assignment

5.GNSS module before the SMT note

3.1.1 When customers Open stencil must be sure the hole bigger to the GNSS module plate, please press 1 to 1 and 0.7 mm is widened

to open outward, the thickness of 0.12 mm.

3.1.2 Can't get the GNSS module bare hands when needs,must we wear the gloves and static ring.

3.1.3 The furnace temperature according to the size of the customer the mainboard ,generally like to stick on a tablet standard

temperature of 250 + - 5,can do 260 + - 5
